Description

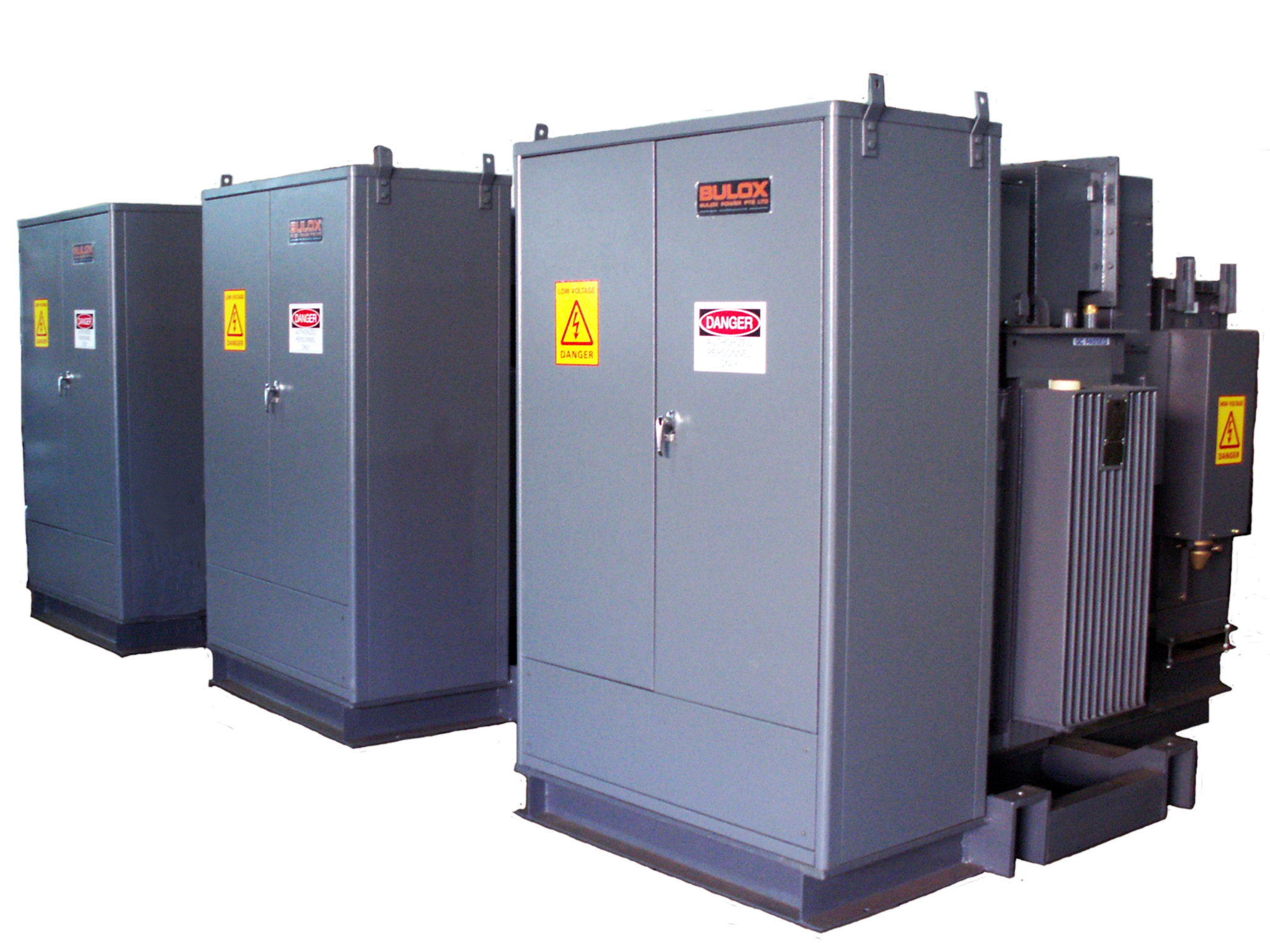

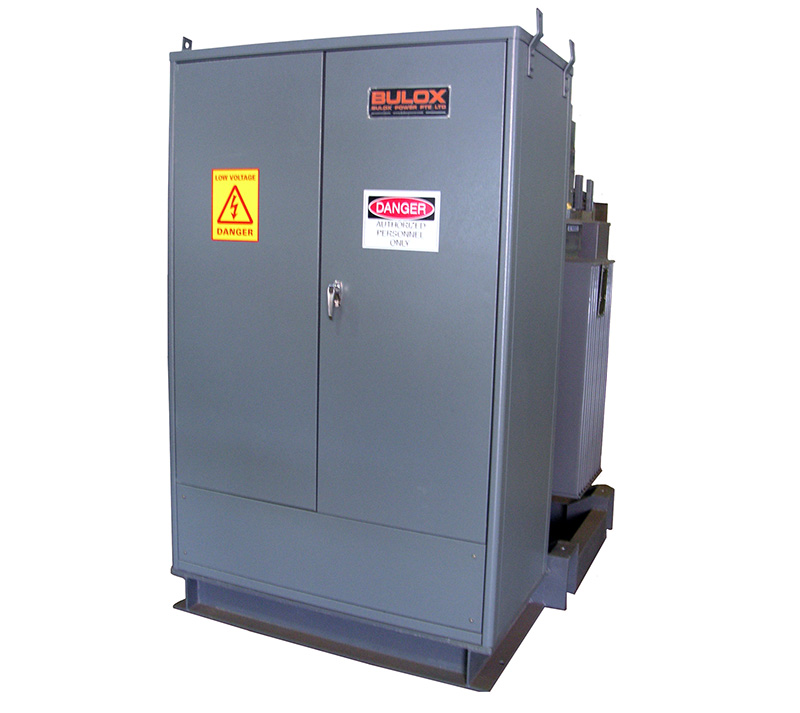

A Compact Substation Unit (CSU) is a pre-fabricated, factory-assembled electrical substation designed to provide reliable and safe power distribution in space-constrained environments.

This all-in-one unit integrates key components such as transformers, high-voltage (HV) and low-voltage (LV) switchgear, and control/protection equipment into a compact, enclosed structure. The CSU is ergonomically designed for easy installation and minimal maintenance, making it an ideal solution for urban areas, industrial sites, and commercial facilities.

Features:

• Compact and modular design to optimize space usage
• Fully enclosed for enhanced safety and protection
• Suitable for indoor and outdoor installations, even in harsh environments
• Equipped with HV/LV transformers (liquid-filled or dry-type)
• Integrated enclosure protection for outdoor use
• Customizable to meet specific customer requirements
• High resistance to environmental factors such as temperature, solar radiation, humidity, and rain
• Ensures maximum operational safety with reduced maintenance needs
• Easy and fast installation for rapid deployment
• Compliance with international standards such as IEC 62271 and IEC 60076

The Compact Substation Unit is an efficient, space-saving, and cost-effective solution, providing reliable power distribution while maintaining high levels of safety and operational efficiency.
